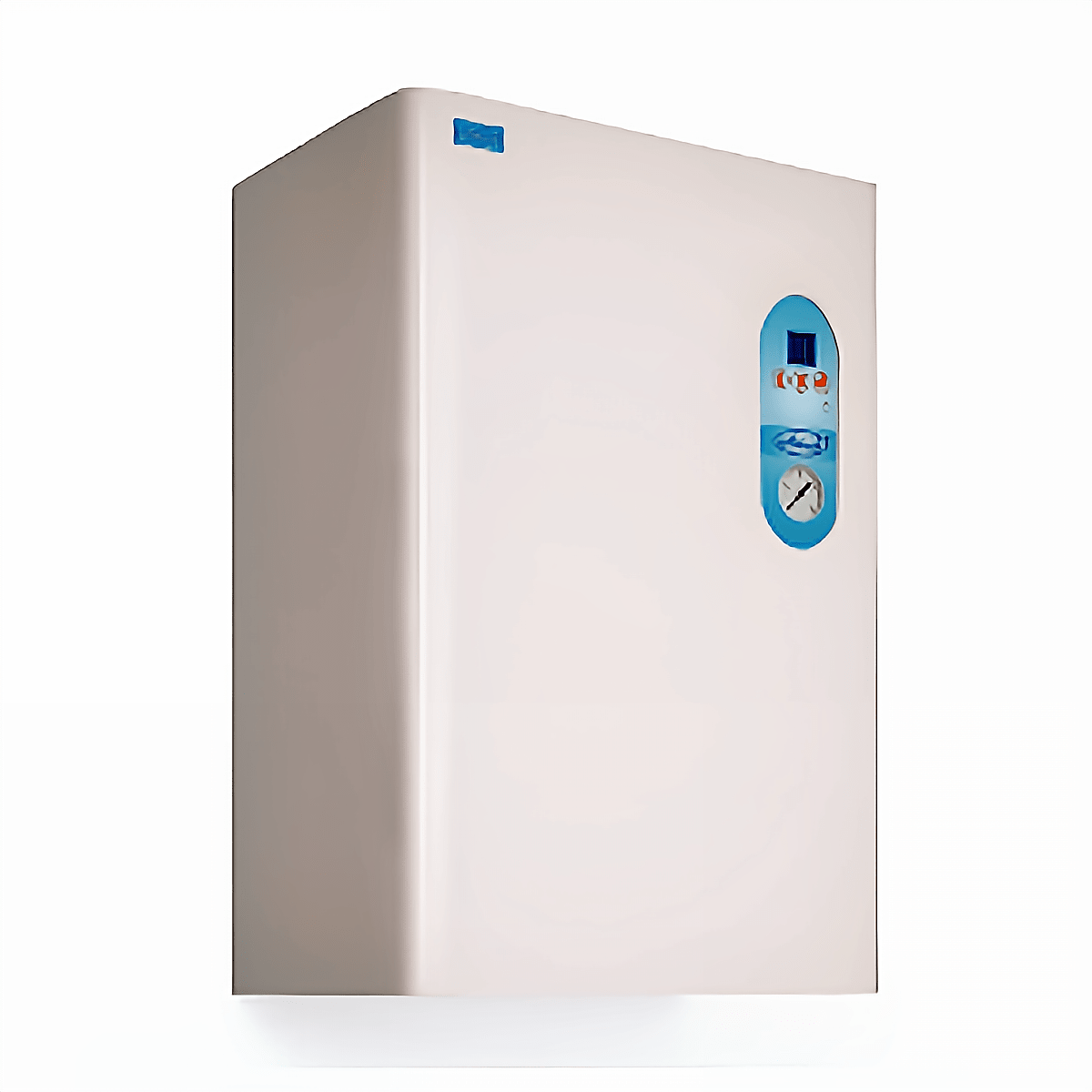

ATTACK Electric Excellent 24 electric boiler 22.5 kW, IP40, 8 l MAG

ATTACK Electric Excellent 24 kW (nominal heat output 22.5 kW)

Product description:
The ATTACK Electric Excellent 24 is a wall-mounted electric boiler for forced-circulation heating systems with higher heating loads. Its PID control precisely switches between heating stages and maintains a constant flow temperature. Remote control via GSM/smartphone is available as an option. Domestic hot water can be generated via an external storage tank and a 3-way valve (TUV operation).

Highlights:

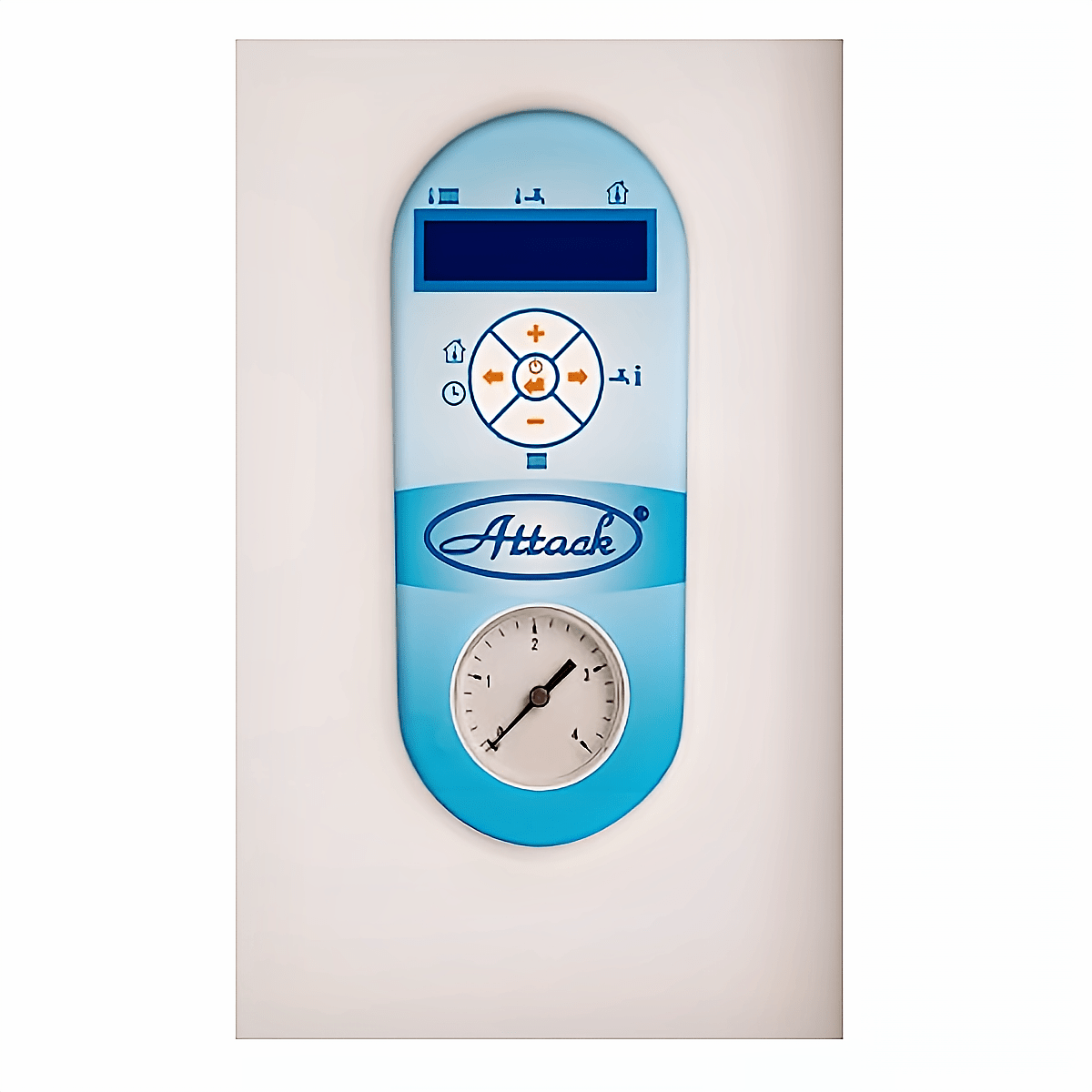

• 99% efficiency, quiet operation, display & Diagnostic memory

• Protective functions including frost/overheating/pressure loss protection

• Compact design despite high performance

Areas of application

Suitable for:

• Single-family and multi-family homes as well as commercial properties up to 22.5 kW heating load,
• radiators or underfloor heating
• Modernization without exhaust system.


Not suitable for:

• Operation without suitable electrical design (three-phase current/protection),
• Hot water without storage tank/TÜV module.

Technical specifications (including explanation)

• Perfomance: 22.5 kW (heat output; model designation "24")

• Tension: 3×230/400 V + N + PE

• Rated current/fuse: 3×36 A; Main switch: 3×40 A

• Protection class: IP40

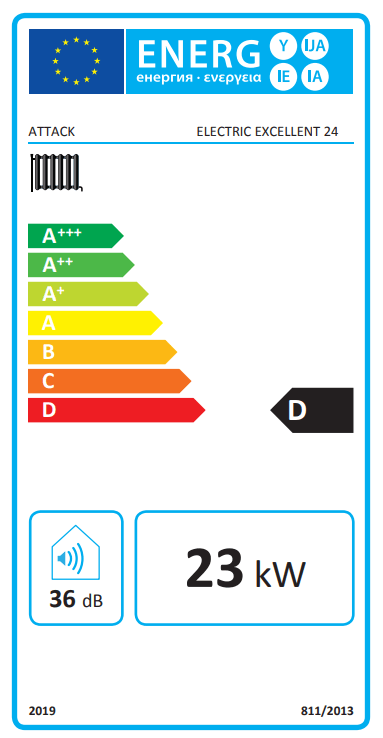

• Energy efficiency class (heating): D

• Operating pressure: 0.4–3 bar; Maximum temperature: 80 °C

• Water content: 10.6 l; Expansion vessel: 8 l

• Connections flow/return: G 3/4" AG

• Dimensions (H×W×D): 656×450×345 mm; Weight: 39.5 kg

Scope of delivery

Boiler (assembled), operating instructions, warranty card, socket, vent valve, jumper/connector for 1×230 V. Not included: mounting kit, TÜV module, GSM module, connection cables.

Conclusion

The ideal electrical solution for higher heating loads: compact, precisely controlled and with clear safety and installation parameters for professional applications.
